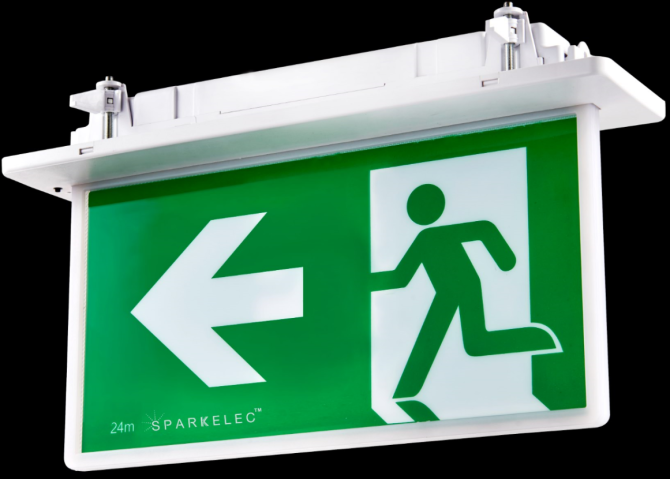

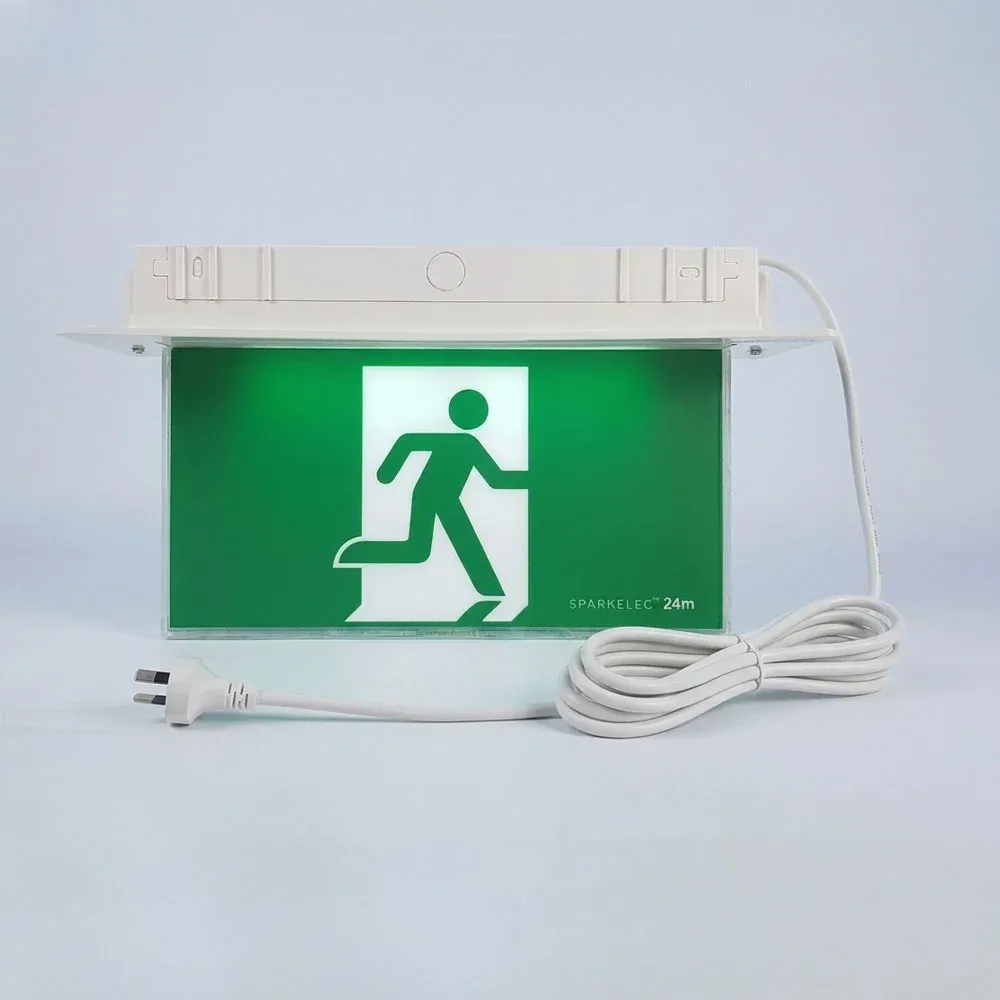

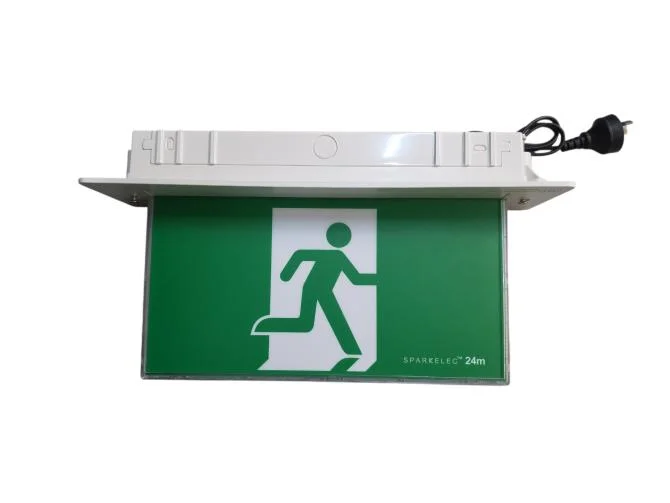

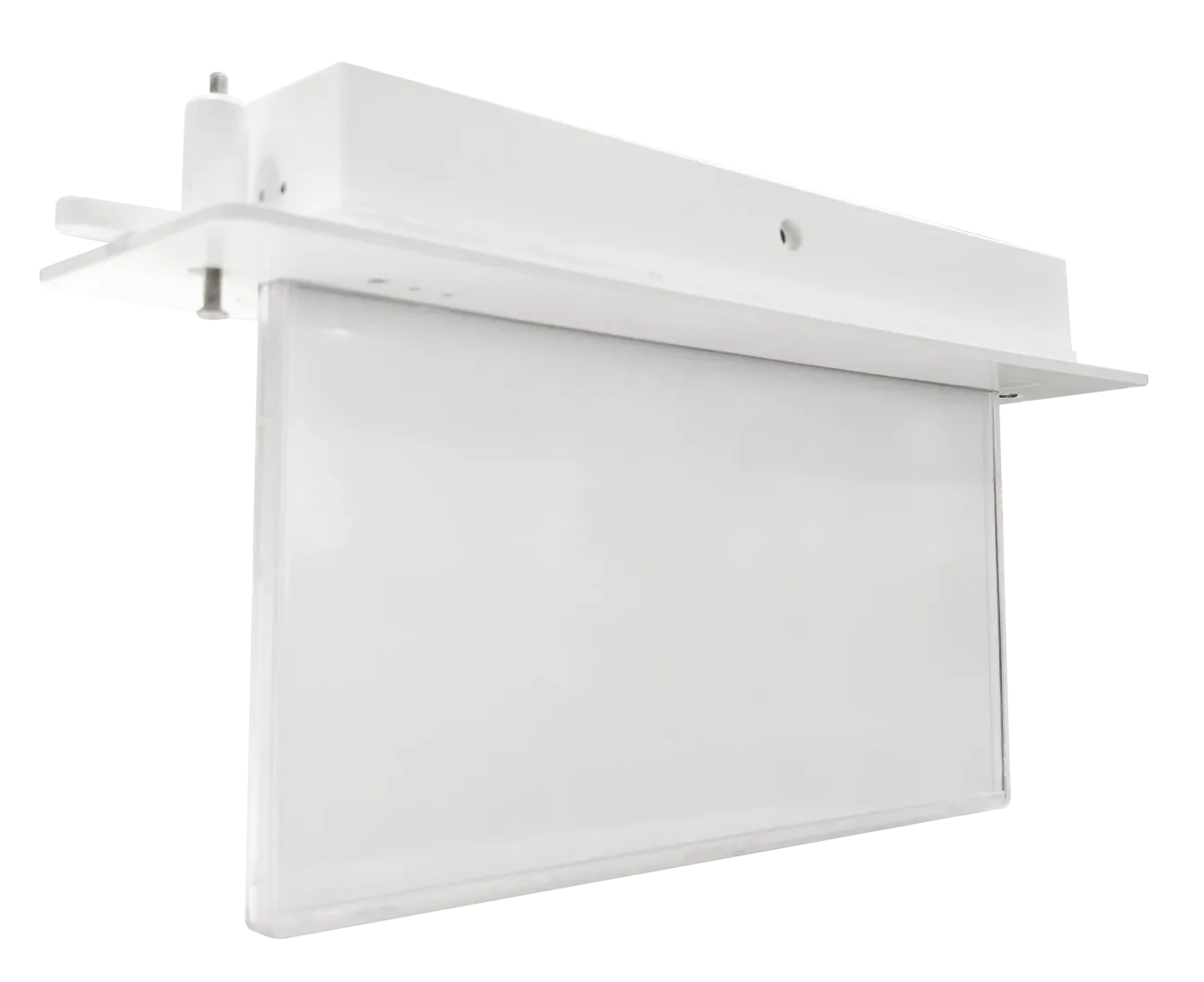

HIGHLINE RECESSED MOUNT SLIMLINE LED Exit Sign Gen3 LiFEPO4 Lithium Battery - SP2003WH+SP2003ADP

HIGHLINE RECESSED MOUNT SLIMLINE LED Exit Sign Gen3 LiFEPO4 Lithium Battery - SP2003WH+SP2003ADP

This is our new GEN3 Model released September 2026. Cutout is LARGER than our previous generation.

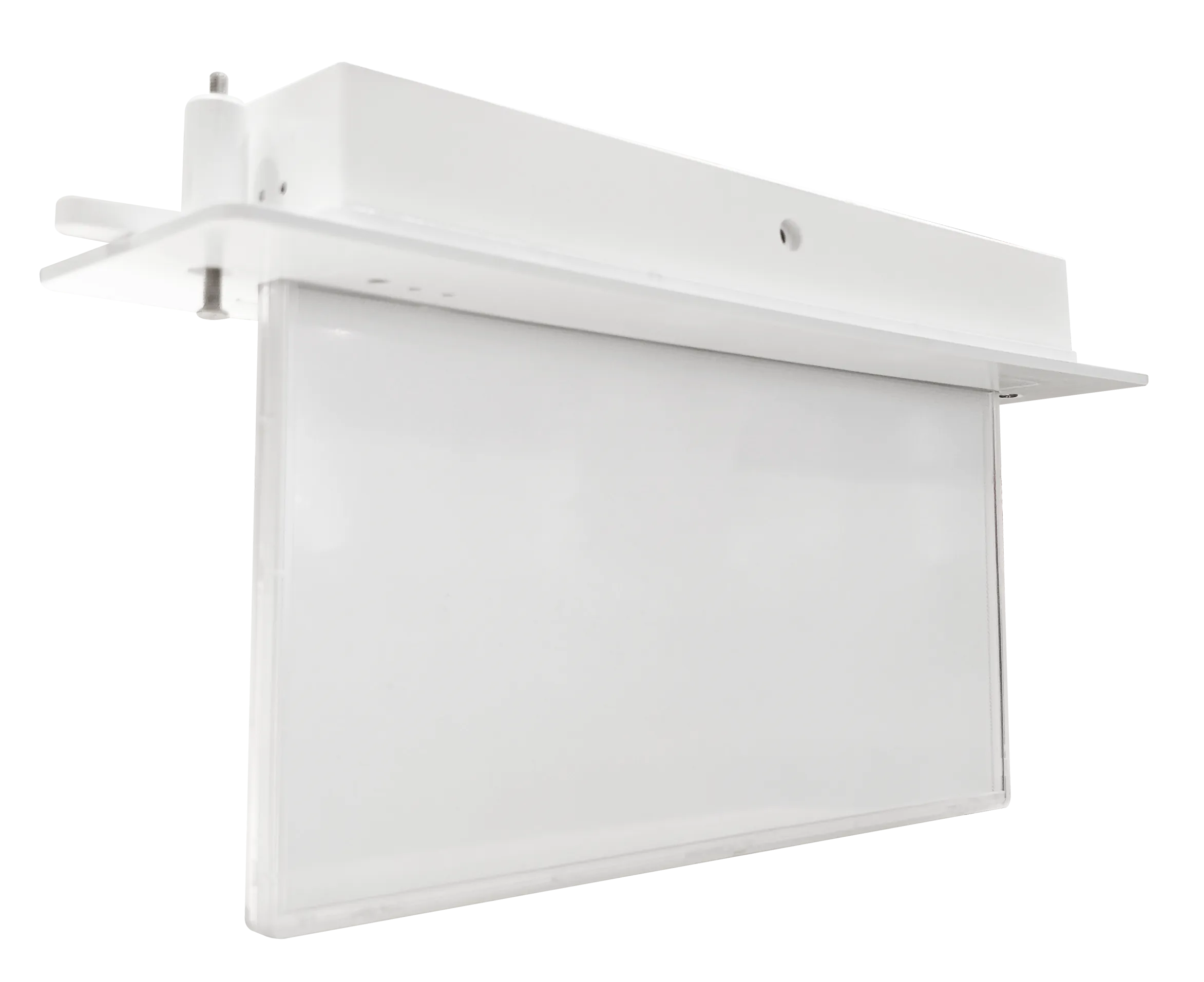

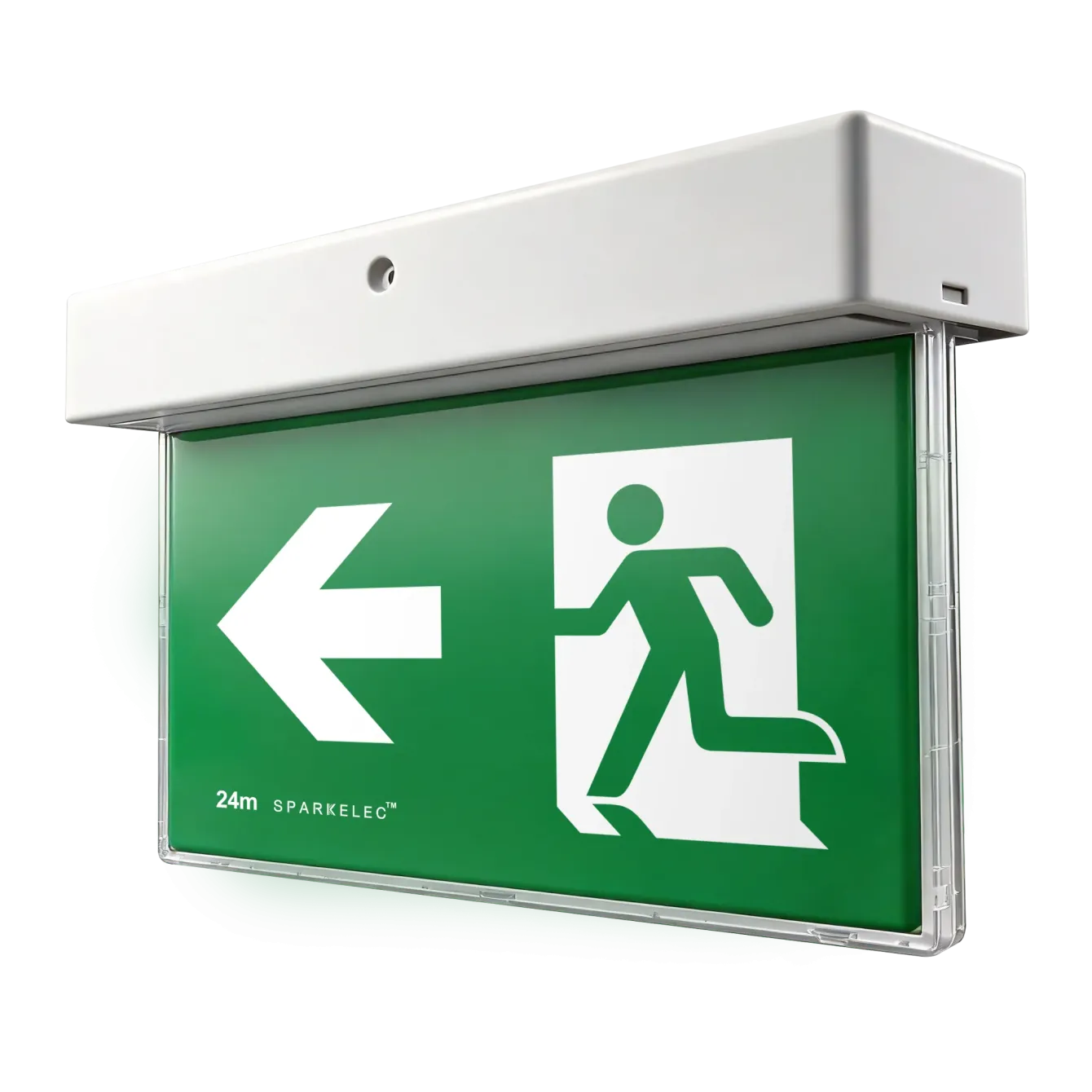

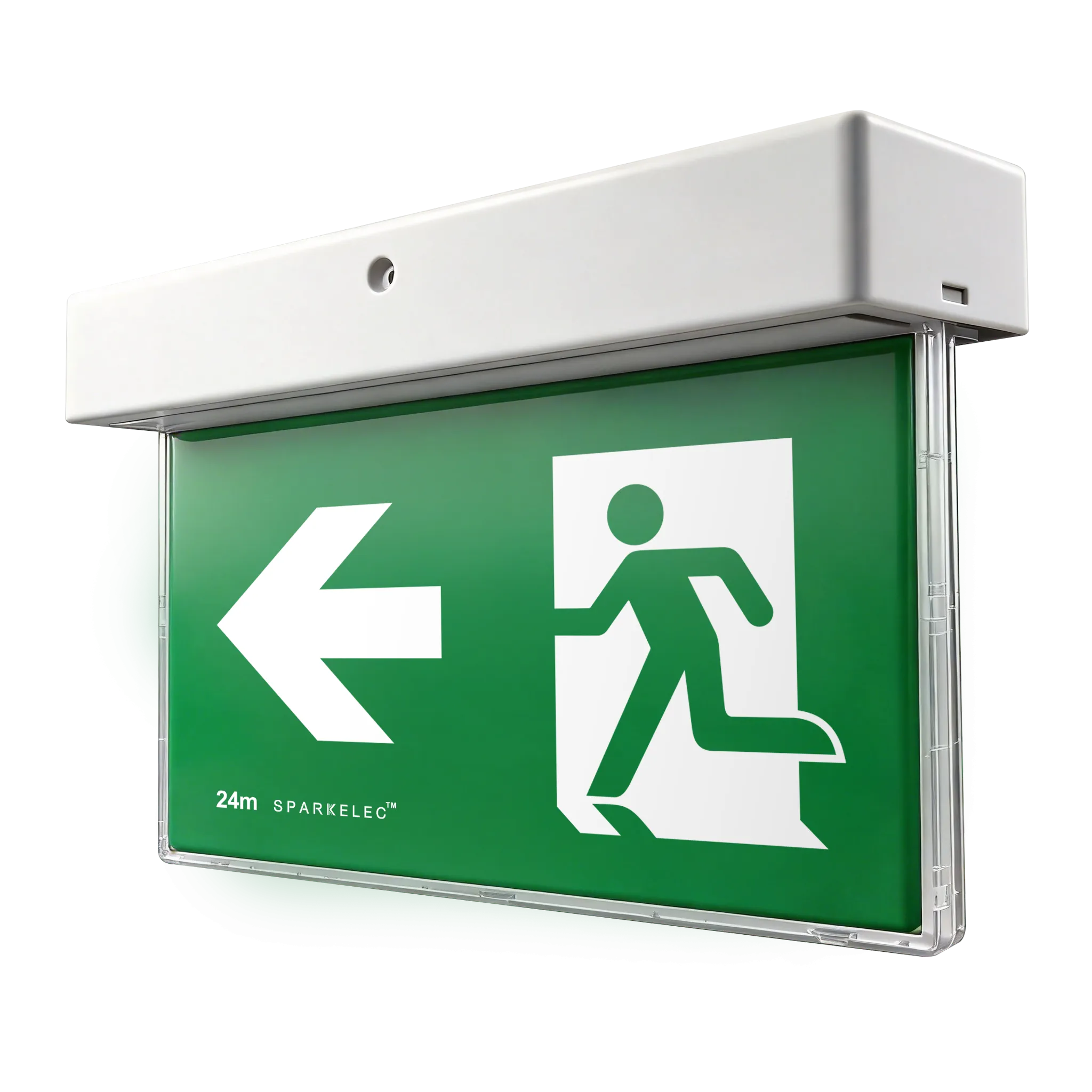

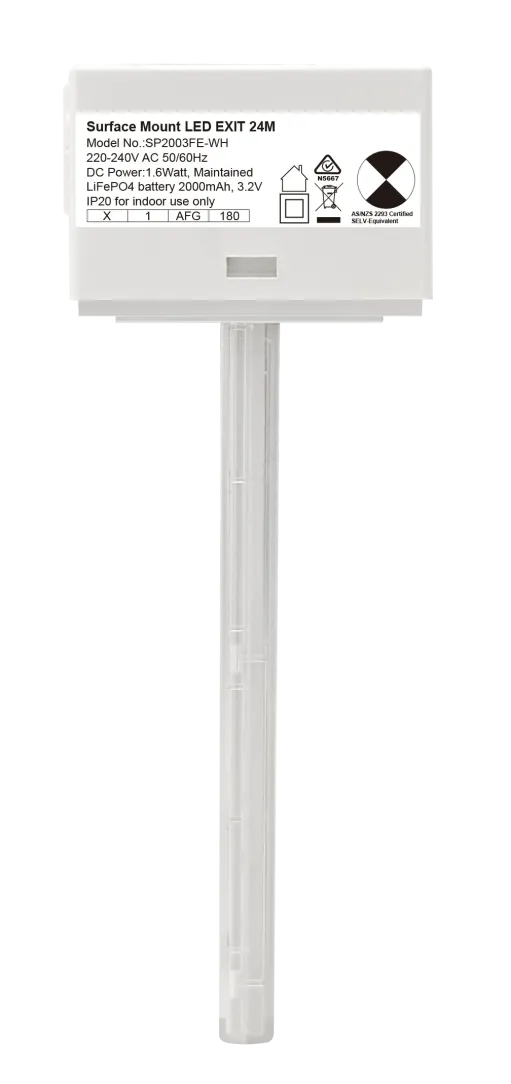

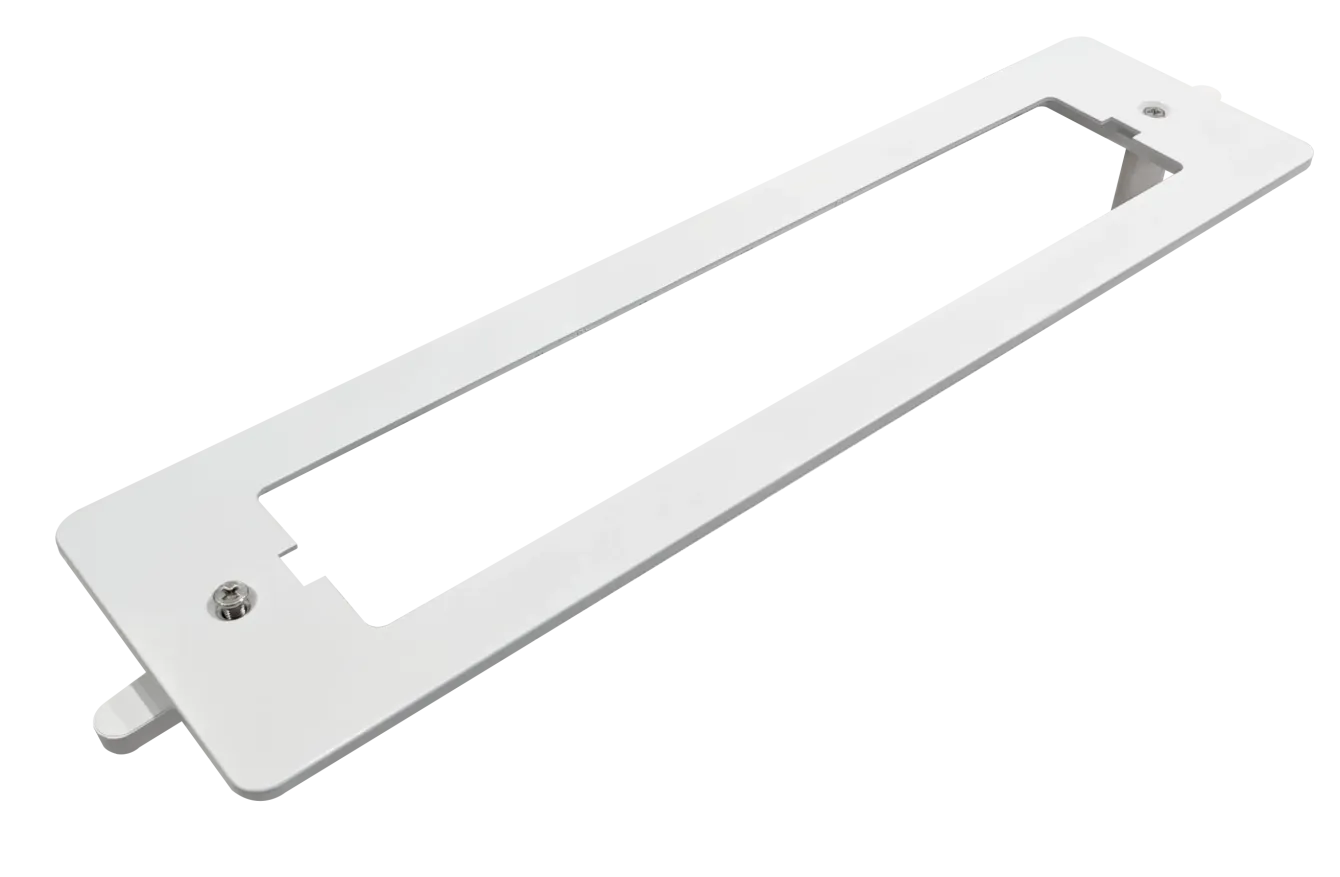

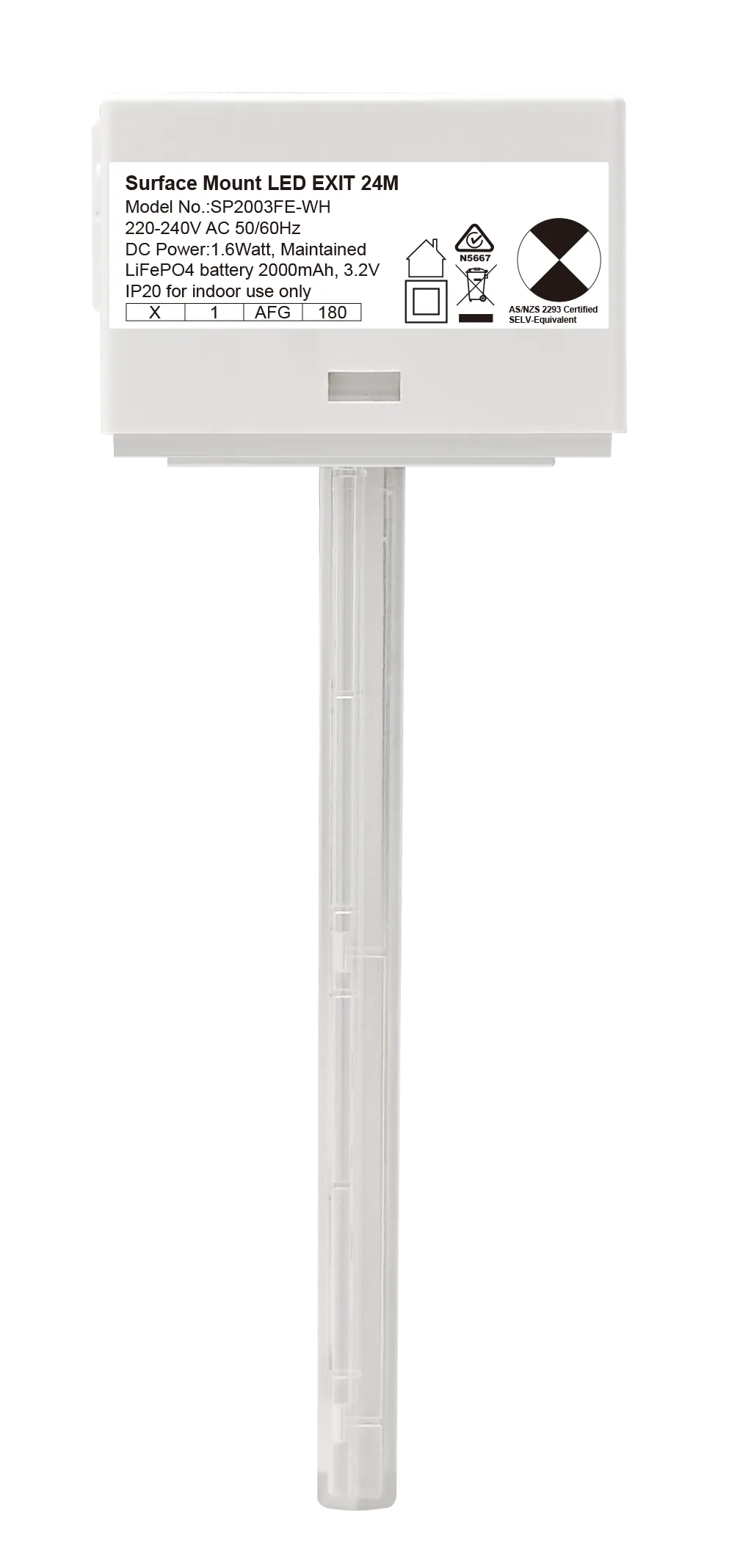

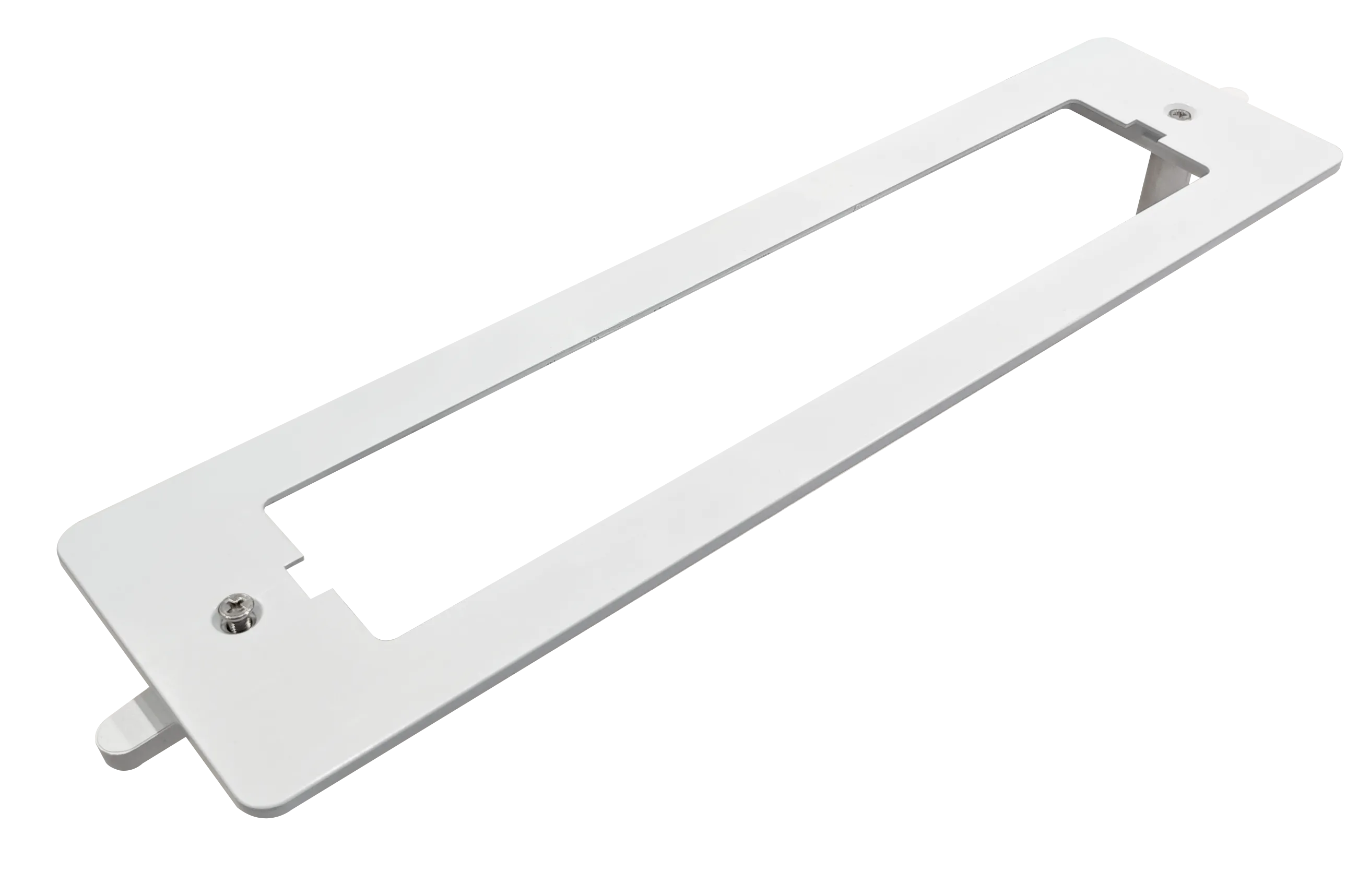

To make a recessed LED Exit we combine our New Gen3 "SP2003WH" Exit with a New Recessed Adaptor Kit "SP2003ADP"

*RECESSED MOUNT*

*AS2293 TESTED/CERTIFIED BY NEMKO & SAA APPROVALS QLD (SEE ATTACHMENTS TAB)

SLIMLINE* Double Sided Wall & Ceiling Mount Exit

- Running Man & Running Man Arrowed Decals Included

- CUT-OUT 385mm x 80mm

LED:  4w, Emergency Power 1.6w

Effective Range: 24M

Lamp Protection: Over charge and discharge protection

Discharge Duration: 3 Hours

Battery Specs: 3.2V 2000mAh Lithium LiFePO4 Battery

Compliant to AS2293.3 / AS2293 CERTIFIED

NOTE

1. Please Read Installation Instructions before connecting to mains supply,

ensure no polarities are reversed

2. Switch off mains supply before replacing

3. Fitting MUST BE Wired to a Permanent Active Circuit, otherwise warranty is AUTOMATICALLY VOID

*WIRING/INSTALLATION DIAGRAM ATTACHED - PLEASE SEE ATTACHMENTS TAB ABOVE
