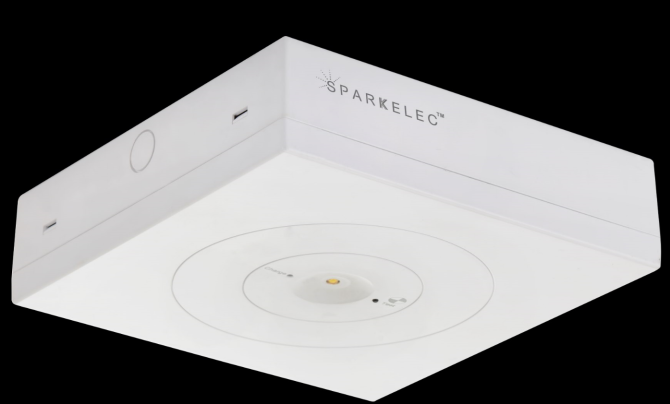

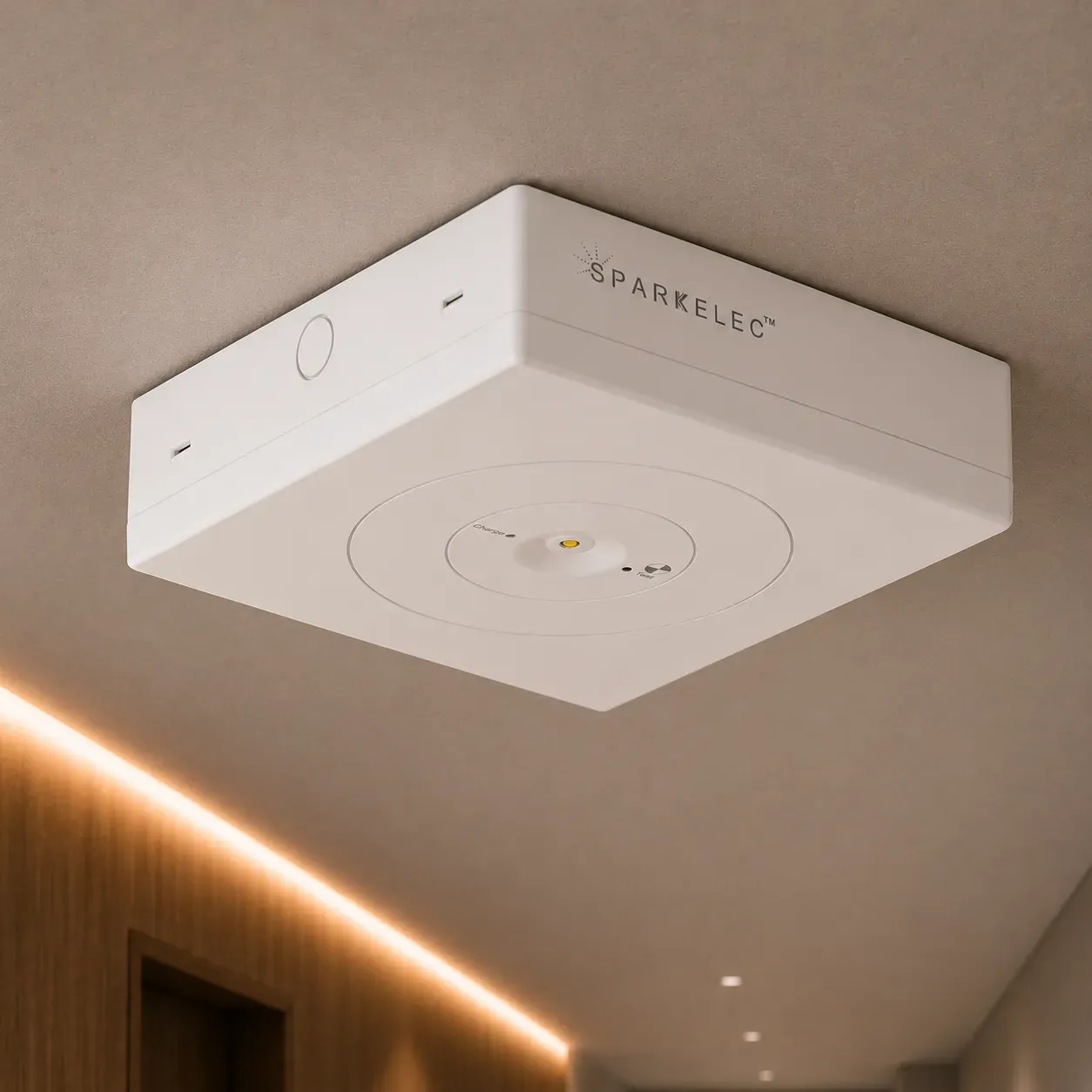

HIGHLINE Surface Mount D40 4W LED Emergency Light LifePO4 Lithium GEN2 - SP3002WH ON SPECIAL

HIGHLINE Surface Mount D40 4W LED Emergency Light LifePO4 Lithium GEN2 - SP3002WH ON SPECIAL

*AS2293 TESTED/CERTIFIED BY NEMKO & SAA APPROVALS QLD (SEE ATTACHMENTS TAB)

Features

- Intelligent Automatic Recharging Function

- Constant Current Mode

- 3 Hour Emergency Operation

- LED Charge Status Display

- Deep Discharge Protection

- Test Switch With Self-Test Function

- Complete with Flex & Plug & Easy Installation

- Emergency Classification D40,C0:D40 C:90:D40

Technical Information

Rated Power Supply: 220v to 240V 50/60hz

Charging Current: 90mA

Discharging Current: 500mA

Recharge Hours: 16 Hours

LED Power: 6 Watt

Performance Figure Measures: 25c

Battery: 6.4v 1500mah LifePO4

LED Indicator: Red Indicator

NOTE

1. Please Read Installation Instructions before connecting to mains supply,

ensure no polarities are reversed

2. Switch off mains supply before replacing

3. Fitting MUST BE Wired to a Permanent Active Circuit, otherwise warranty is AUTOMATICALLY VOID

*WIRING/INSTALLATION DIAGRAM ATTACHED - PLEASE SEE ATTACHMENTS TAB ABOVE
