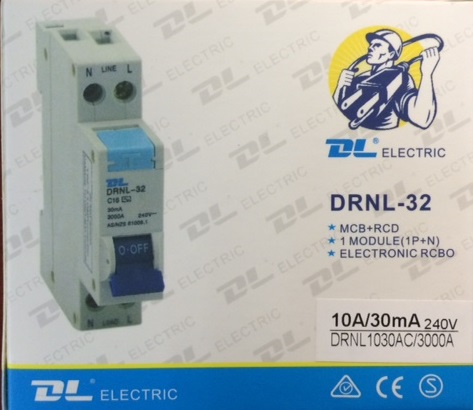

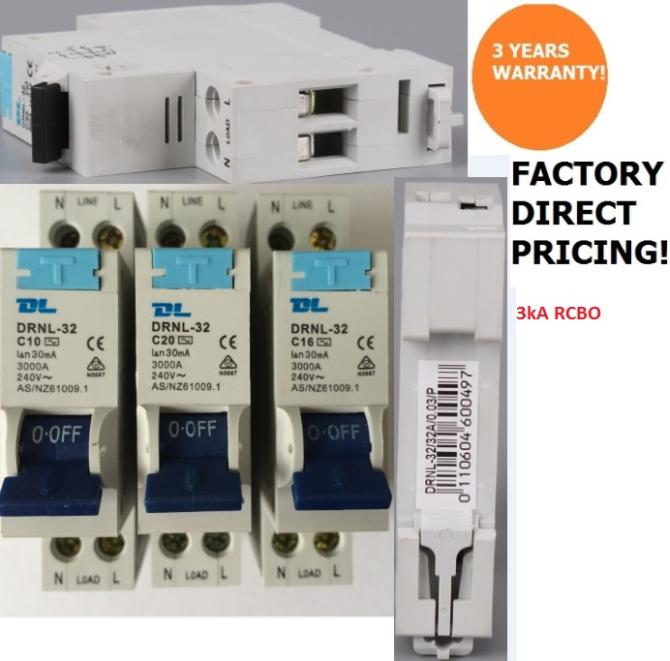

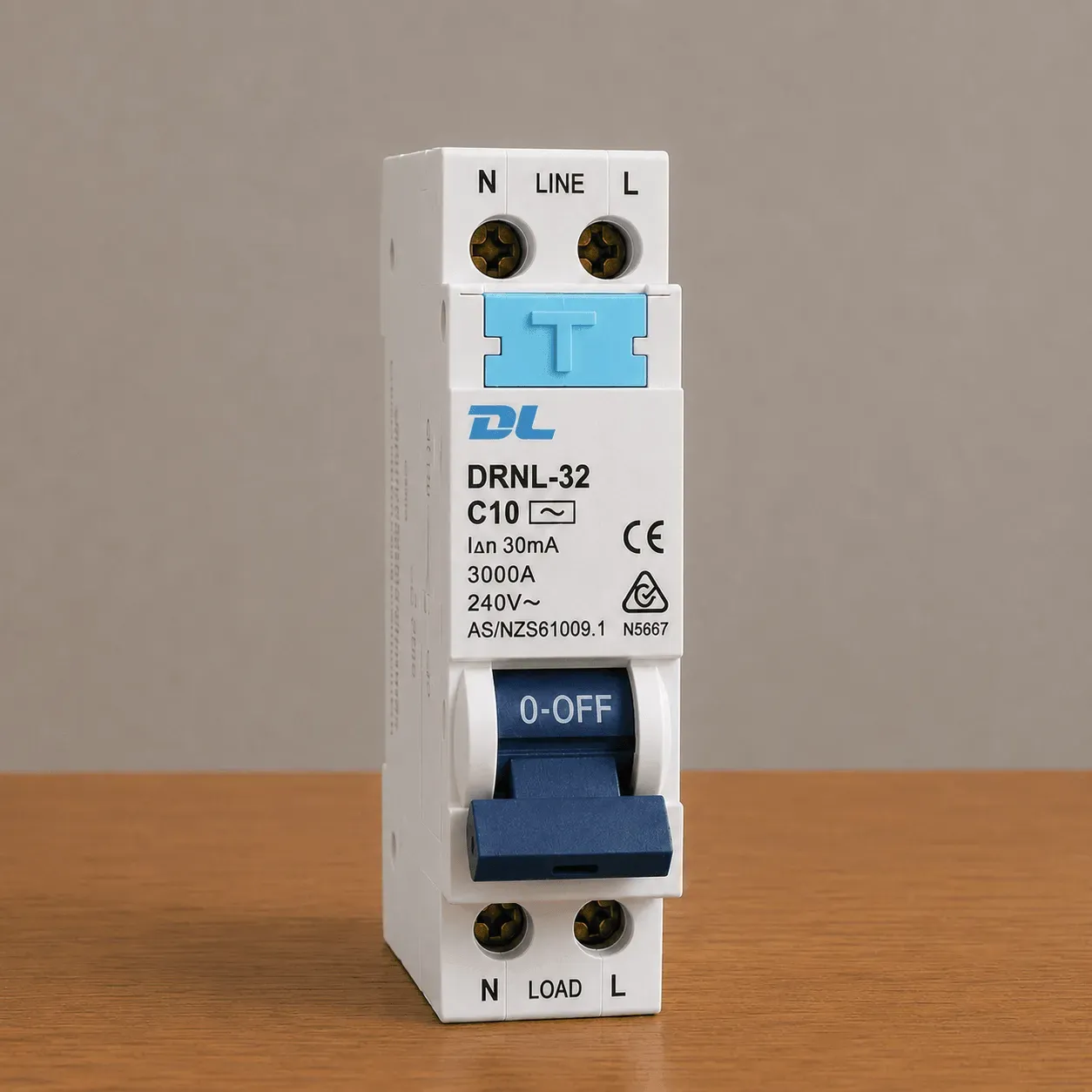

TYPE AC - 3kA 10 Amp Single Pole Safety Switch RCBO RCDMCB 30mA - DL Branded 3 YEARS WARRANTY!

Code:

DRNL-32, RCBO310

*TYPE AC Valid for maintenance (replacing existing AC RCBO's Only)

*NEW 2022 MODEL IS NOW NON-POLARISED (Line & Load TOP OR BOTTOM) & ESV LISTED FOR SALE & LEGAL

USE FOR ALL VICTORIAN CUSTOMERS

Type: 20 AMP, Single Pole (1P +N), Single Module 18mm Wide

Short Circuit Capacity/Trip Rating: 3kA or 3000A (Suitable For Domestic Applications)

Rated Residual Current: 30mA

RCBO Type: AC Curve

Extremely Safe: It Cut Neutral, Some Major Brand(s) Dont! So you can use

On Temporary or on the Marina

Two Pole Safety Feature: Allows Switching of Both Active & Neutral Contacts

Single Module: Ideal in Saving valuable switchboard space

Australian : SAA131351EA / RCM: N5667 (SEE Attachments Tab For Approval Certificate)

FACTORY DIRECT PRICING

3 Years Replacement Factory Warranty

Technical Data	DRNL-32
Standards	AS/NZS 61009 - 1
Magnetic tripping characteristics	B ，C
Residual tripping characteristics	AC
Rated current	6 - 32
Rated residual current	30 mA
Calibration temperature	30 ℃
Rated voltage 1P	240V
Frequency	50/60
Maximum service voltage	264
Tripping Duration:	Instaneous<0.1s
Power supply	NON POLARISED Line & Load TOP OR BOTTOM
Selectivity class	3
Residual making and breaking capacity	2000A
Short circuit capacity	3000A
Isolation application (IEC 60947-2)	Yes
Insulation resistance (Mohm)	1,000
Insulation voltage (V)	500
Dielectric rigidity (V)	2,500
Vibration resistance	1.5g
Endurance (operations) electrical	>6,000
Mechanical	>20,000
Protection degree outside	IP20
inside enclosure	IP40
Self extinguishing degree (UL 94)	V2
Tropicalisation (IEC 60068-2)	+55 ℃/95% RH
Operating temperature	-5/+55 ℃
Storage temperature	-25/+70 ℃
Terminal capacity (top & bottom) min / max	1-16mm
Terminal torque (top / bottom)	3
Busbar systems	No
Accessories	No

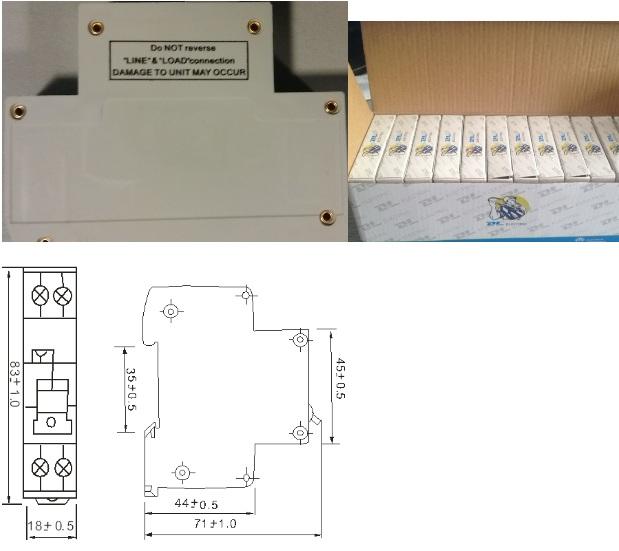

Dimensions (mm)	71(H)81(L)18(W)
Weight (g)	85
