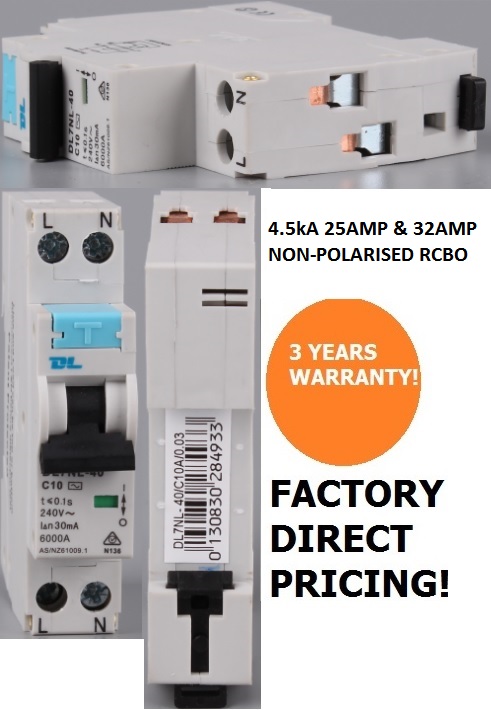

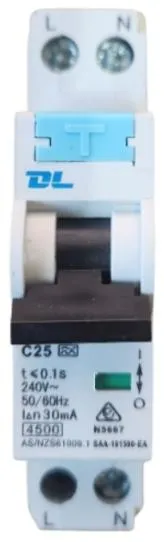

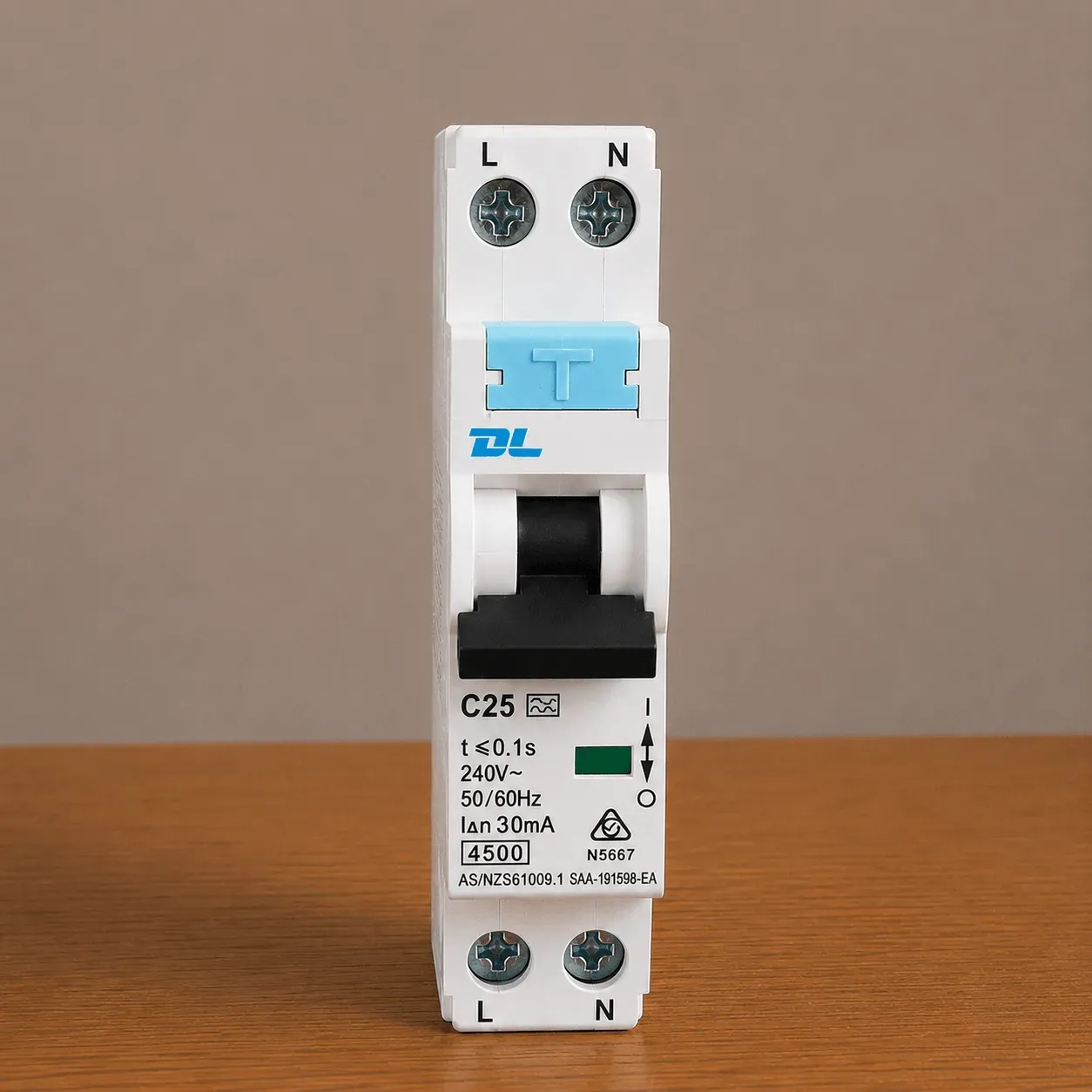

Type: 25AMP, Single Pole (1P +N), Single Module 18mm Wide
Short Circuit Capacity/Trip Rating: 4.5kA or 4500A (Suites Commercial Applications)
Rated Residual Current: 30mA
RCBO Type: TYPE A (STOCK FROM 1 MAY 2023)
Extremely Safe: It Cut Neutral, Some Major Brand(s) Dont! So you can use
On Temporary or on the Marina
Australian : SAA1290946EA / RCM: N5667 (SEE Attachments Tab For Approval Certificate)
Two Pole Safety Feature: Allows Switching of Both Active & Neutral Contacts
Single Module: Ideal in Saving valuable switchboard space
FACTORY DIRECT PRICING
The 4.5kA is a NON-POLARISED RCBO, Where Load/Power Supply
Can be Entered on THE TOP OR BOTTOM!
3 Years Replacement Factory Warranty
|
Technical Data |
DRNL-40 |
|
Standards |
AS/NZS 61009 - 1 |
|
Magnetic tripping characteristics |
B ，C |
|
Residual tripping characteristics |
AC |
|
Rated current |
6, 10, 16, 25, 32, 40 |
|
Rated residual current |
30 mA |
|
Calibration temperature |
30 ℃ |
|
Rated voltage 1P |
240V |
|
Frequency |
50/60 |
|
Maximum service voltage |
264 |
|
Tripping Duration: |
Instaneous<0.1s |
|
Power supply/LOAD |
TOP OR BOTTOM NON POLARISED! |
|
Selectivity class |
3 |
|
Residual making and breaking capacity |
2000A |
|
Short circuit capacity |
4500A |
|
Isolation application (IEC 60947-2) |
Yes |
|
Insulation resistance (Mohm) |
1,000 |
|
Insulation voltage (V) |
500 |
|
Dielectric rigidity (V) |
2,500 |
|
Vibration resistance |
1.5g |
|
Endurance (operations) electrical |
>6,000 |
|
Mechanical |
>20,000 |
|
Protection degree outside |
IP20 |
|
inside enclosure |
IP40 |
|
Self extinguishing degree (UL 94) |
V2 |
|
Tropicalisation (IEC 60068-2) |
+55 ℃/95% RH |
|
Operating temperature |
-5/+55 ℃ |
|
Storage temperature |
-25/+70 ℃ |
|
Terminal capacity (top & bottom) min / max |
1-16mm |
|
Terminal torque (top / bottom) |
3 |
|
Busbar systems |
Yes |
|
Accessories |
No |
|

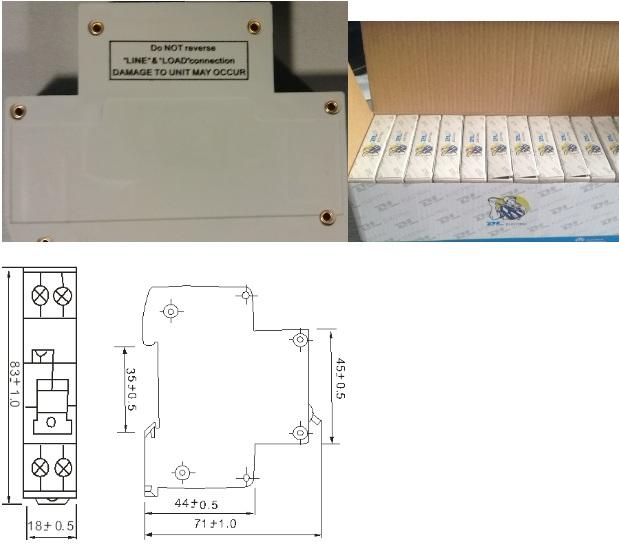

Dimensions (mm) |
72(H)81(L)18(W) |
|
Weight (g) |
105 |
DENROM DRNL-32 3kA RCBO
DL DRNL-32 3kA RCBO

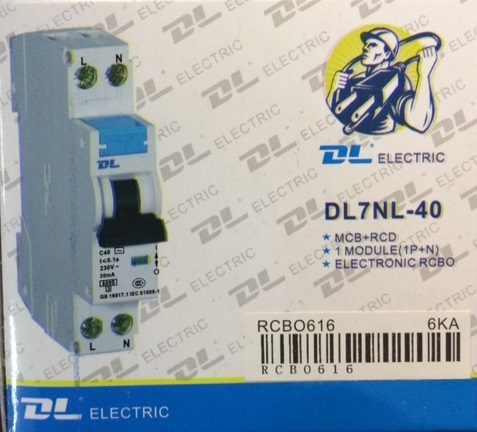

DENROM DL7NL-40 6kA RCBO Non Polarised
DL DL7NL-40 6kA RCBO Non Polarised
ATTN VICTORIAN CUSTOMERS - Please See Attachments Tab For Additional Testing Requirements By ESV Energy Safe Victoria - We have had Additional Testing Done by TUV Rheinland Victoria to show our RCBO's meet the new standards as required By ESV & Additional requirements test reports attached (IN ATTACHMENTS TAB) - Do Not Purchase Any RCBO's that Do Not Meet the new ESV Requirements as it is illegal to sell & use in VICTORIA! Electricians Beware!
PLEASE CHECK THE ESV WEBSITE, DL IS ON THE APPROVED LIST OF RCBO MANUFACTURERS
