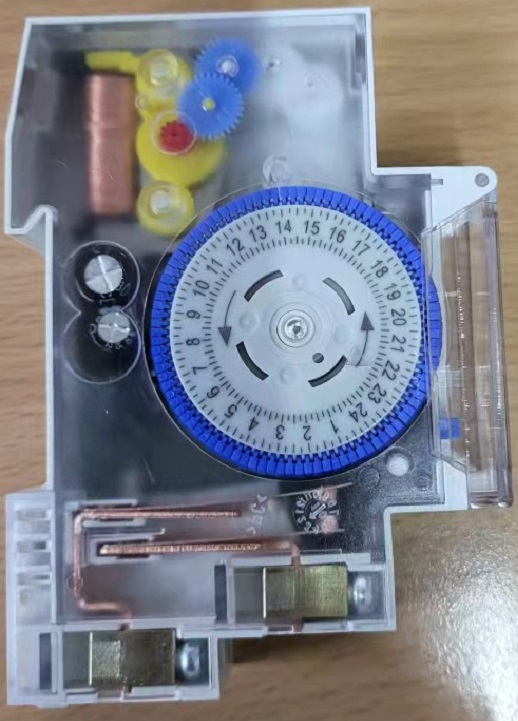

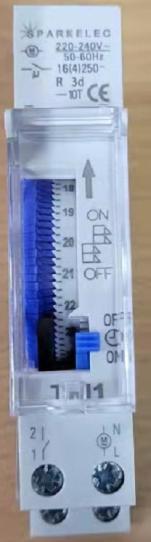

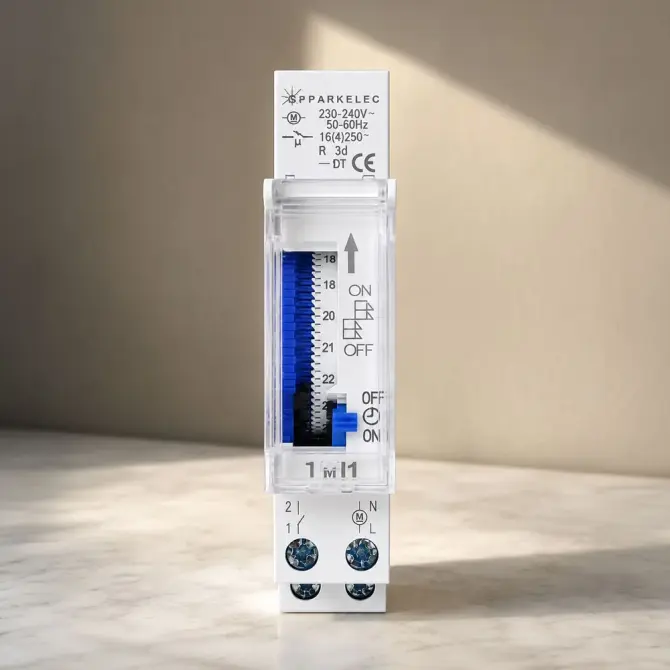

Single Phase Analogue 24 Hour with Backup Battery - HIGHLINE TM1

Single Phase Analogue 24 Hour with Backup Battery - HIGHLINE TM1

• Simple programming functionality
• Compact slimline design
• Transparent display flap for added protection
• Manual override feature
• 1 year warranty

Specifications

• Mounting: Din Rail
• Weatherproof rating: IP20
• Display: Analogue
• Supply voltage: 240Vac
• Operating frequency: 50/60Hz
• Power consumption: 1W
• Relay outputs: NO
• Rated switching voltage: 240Vac
• Operational current range: Resistive 16A, inductive 10A
• Timing range: 24 hours, 15 min segments
• Switching functions: Off, Auto, On
• Max cable capacity: 1 Phase: 4mm²
• Working reserve time: 100 hours
