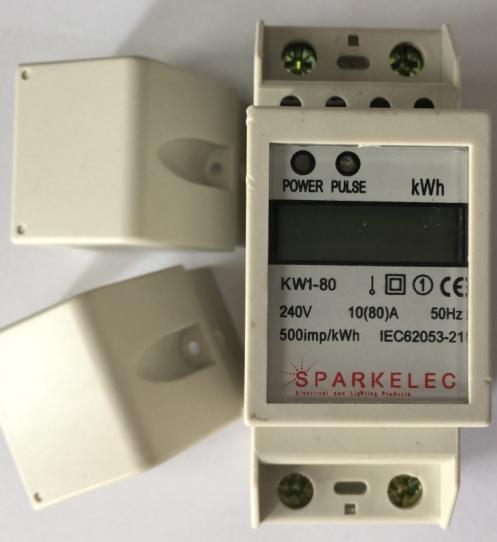

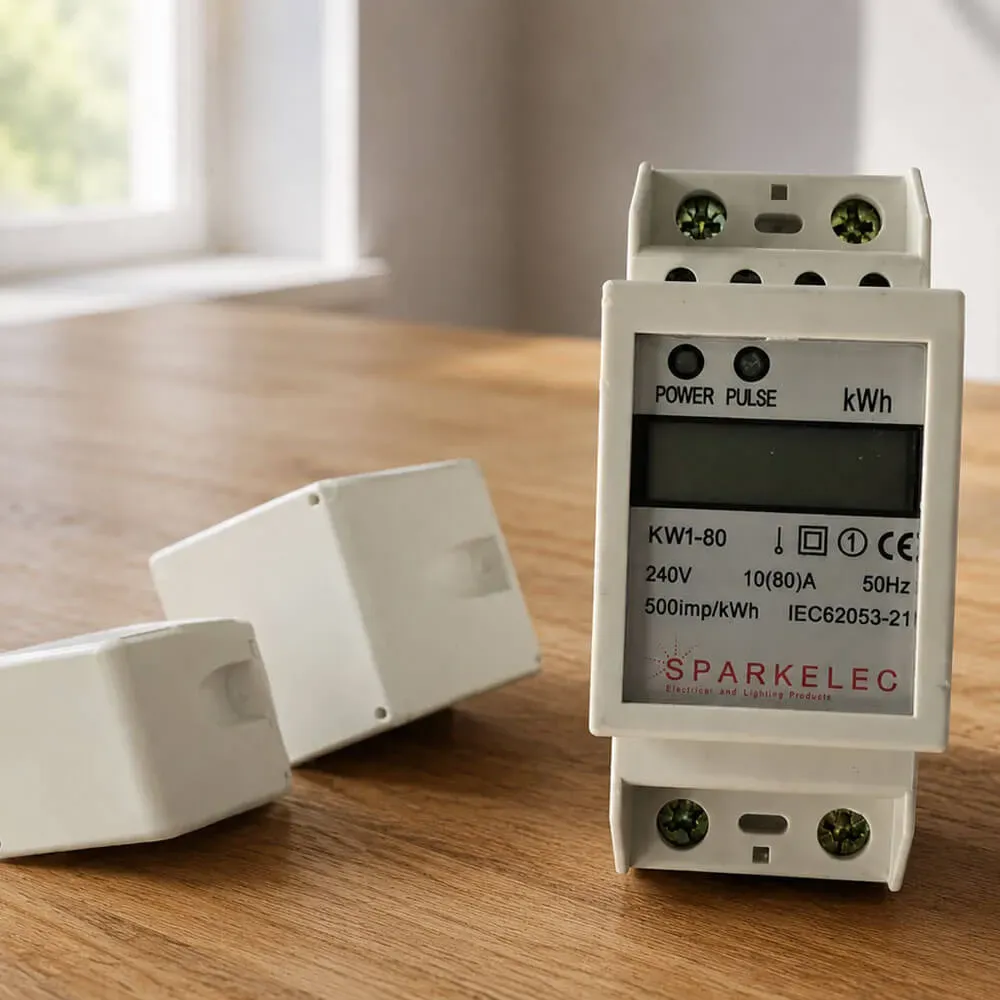

Single Phase 80 Amp DIGITAL Kilowatt Hour Meter (2 MODULES WIDE) - KW1-80

Single Phase 80 Amp DIGITAL Kilowatt Hour Meter (2 MODULES WIDE) - KW1-80

DIGITAL VERSION WITH BATTERY BACKUP

ONLY 2 MODULES WIDE!

• Max. Rated Current: 80A (Actually 100A. But Preferred Max 80A)
• Voltage: 240V AC
• Frequency Range: 50Hz±10%
• Data Save: 20 Years
• Max. Cable Capacity: 35mm²
• Operating Capacity: -10°C to ±50°C
• Operating Humidity: <85%
• International Standard: IEC 62053-21
• Dimensions: 140mm(H) x 34mm(W) x 64mm(D)
• Poles: 2 Pole
