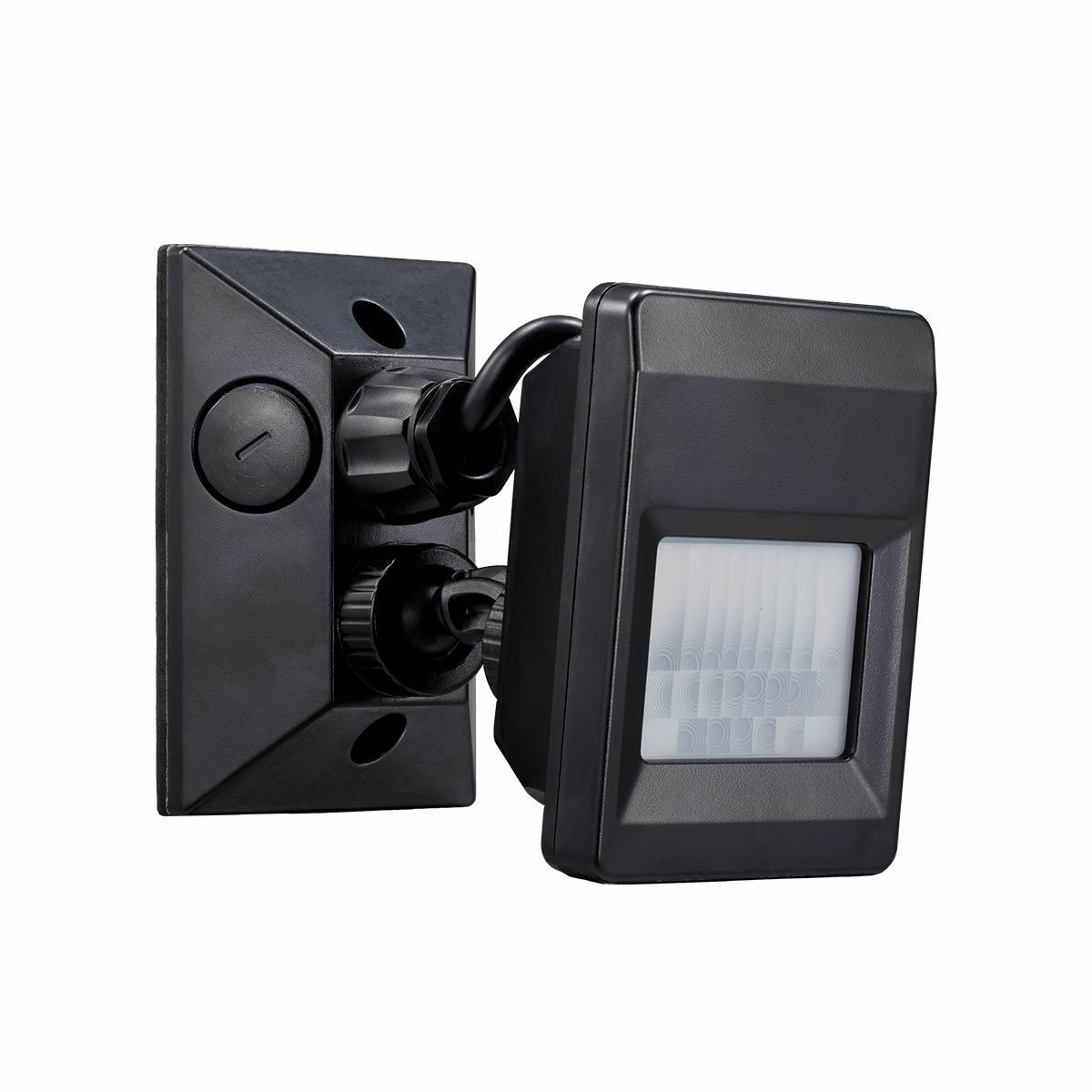

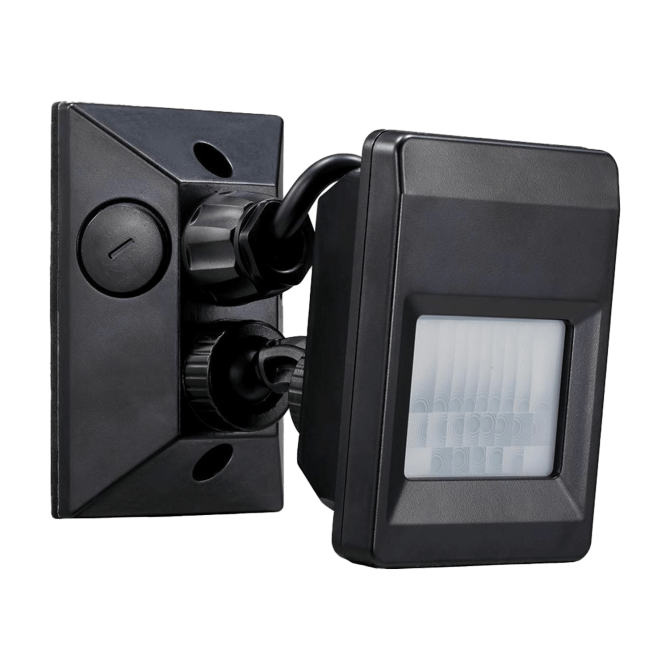

IP66 RATED 3 WIRE SENSOR with Manual Over Ride- HIGHLINE ST19BK

 IP66 RATED 3 WIRE SENSOR with Manual Over Ride- HIGHLINE ST19BK

BLACK

Specifications:

• Power Source: 220-240V/AC
• Power Frequency: 50/60Hz
• Time Delay: Min.10sec±3sec Max.30min±2min
• Rated Load:
• - 2000w MAX FOR HALOGEN
• - 300w for Compact Fluorescent
• - 150w MAX for LED
• Detection Moving Speed: 0.6-1.5m/s Installation Height: 1.8-2.5m
• Detection Range: 120°
• Detection Distance: 6-18m(<24℃)(adjustable)
• Ambient Light: <3-2000LUX
• Working Temperature: -20~+40℃
• Working Humidity: <93%RH
• Power Consumption: approx 0.5W
• Manual Over-Ride Instructions:
• - 1) To operate as a light only , turn power off for 3 seconds and then back on.
• - 2) To reverse the override function, turn power off for 10 seconds and then back on.

SEE ATTACHMENTS TAB FOR MANUAL
