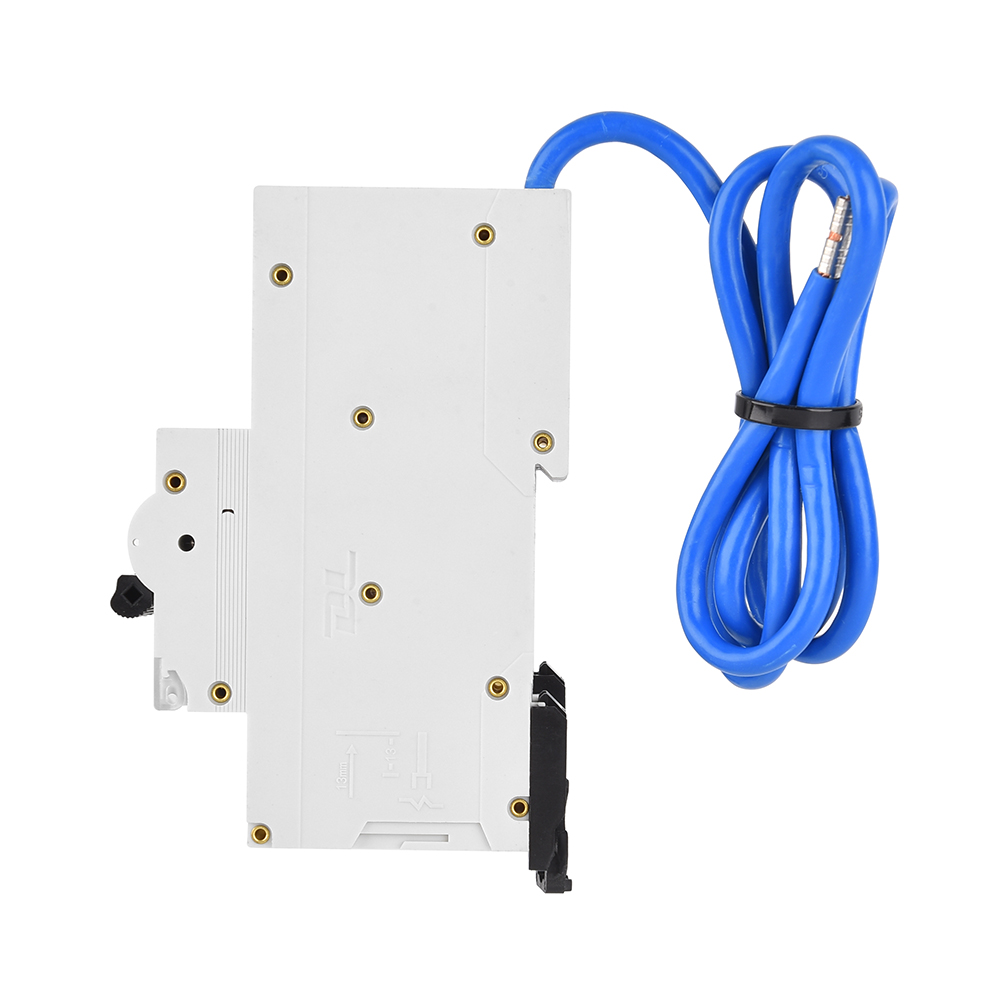

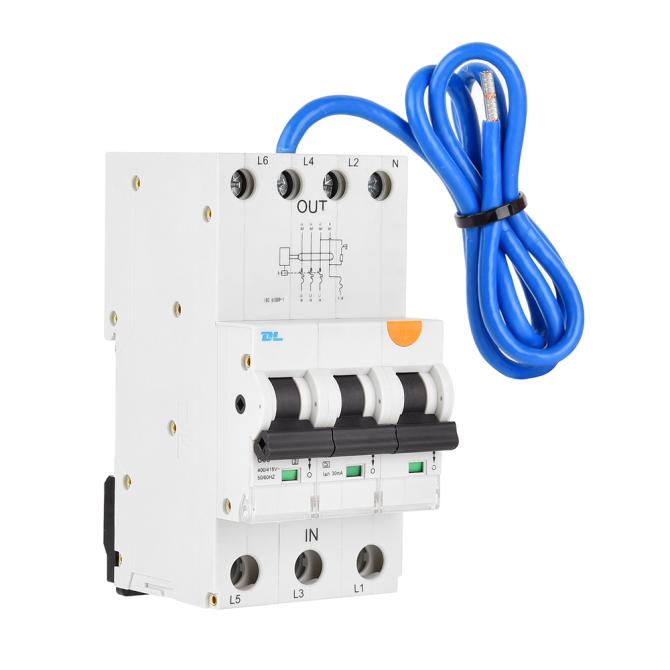

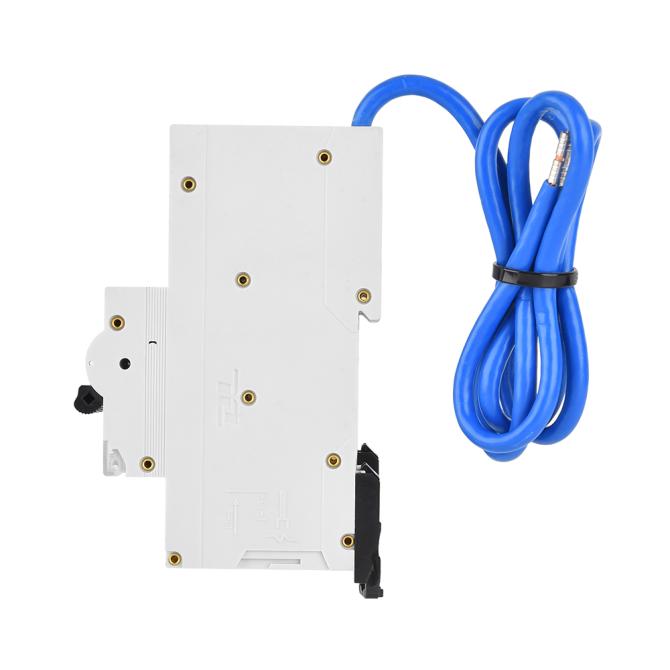

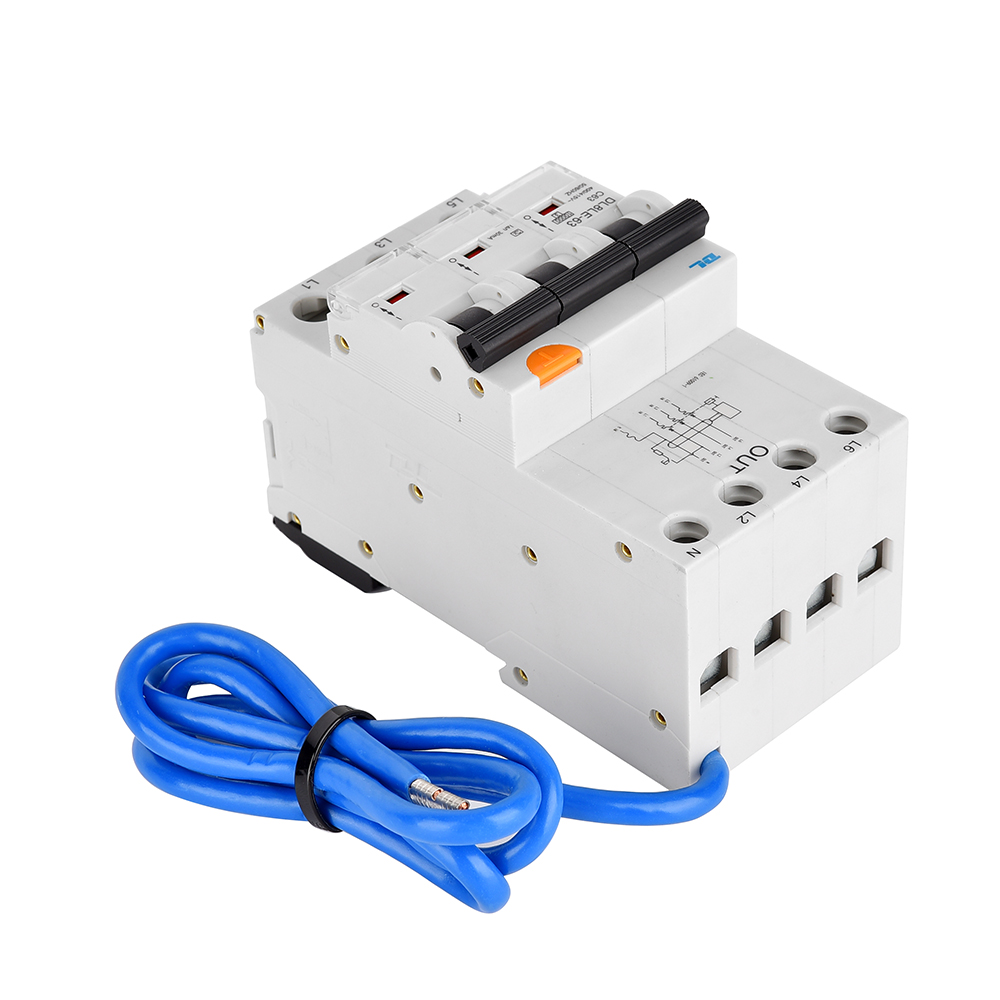

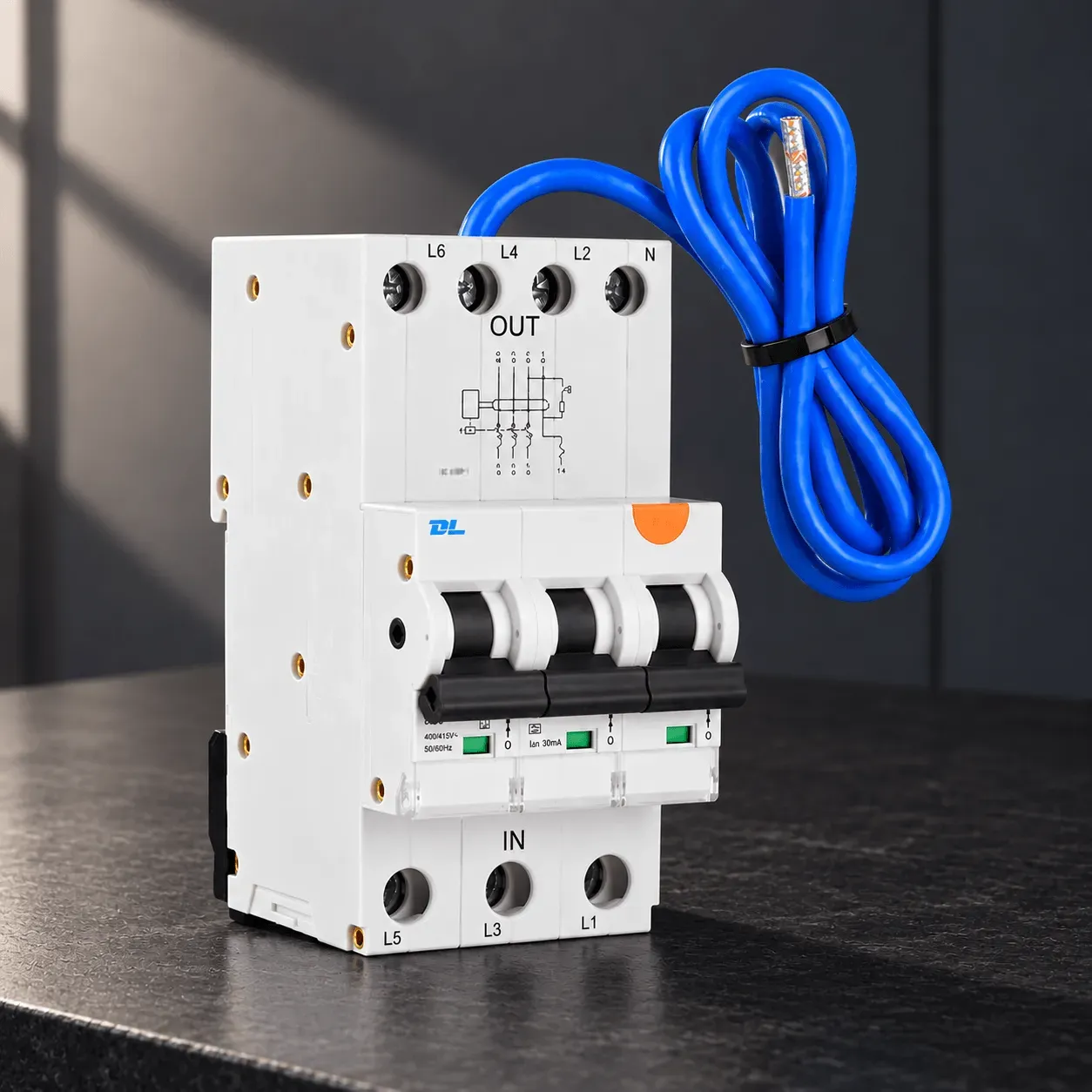

DL 3 Pole/3 Module 63amp 10kA RCBO with Tail - Fit NHP Concept One Panelboards - RCBO1063TAIL

DL 3 Pole/3 Module 63amp 10kA RCBO with Tail - Fit NHP Concept One Panelboards - RCBO1063TAIL

NEW PRODUCT LAUNCHING Q2 2025

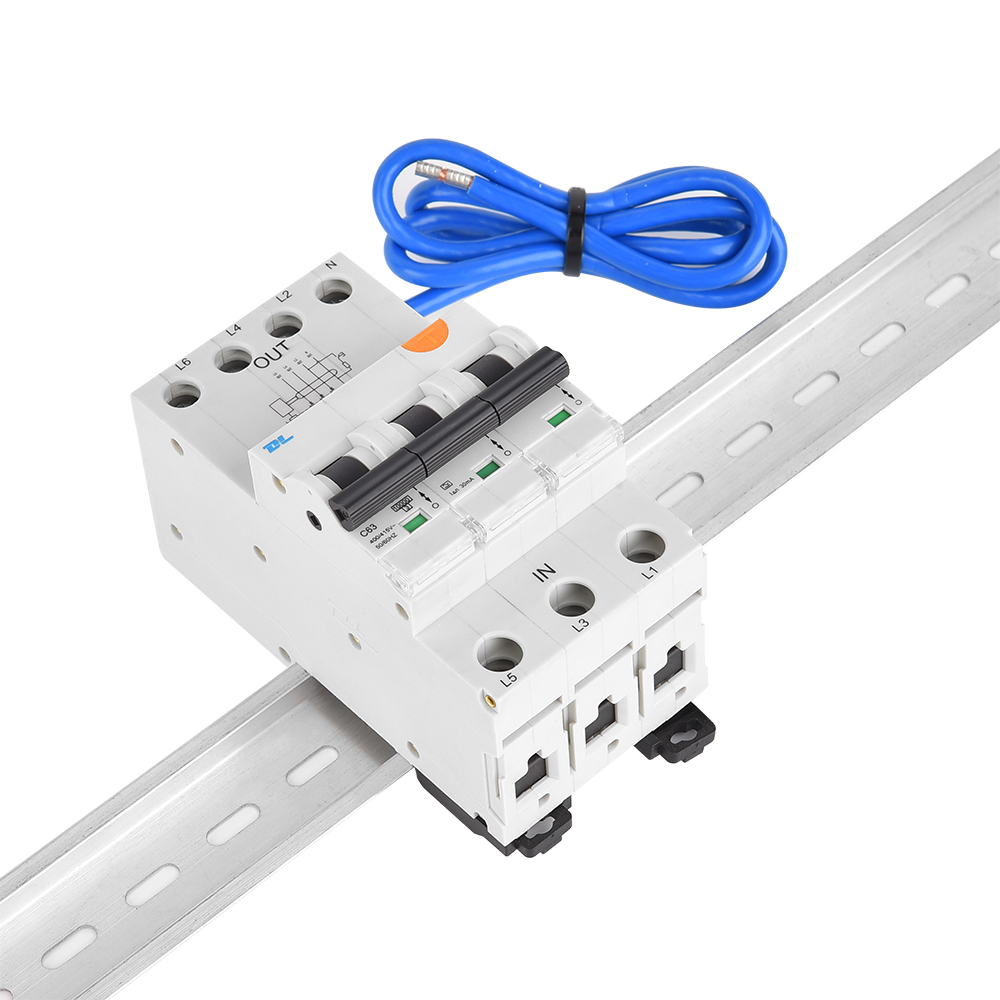

Mounting method - Standard 35mm Din Rail

Fits Certain Busbar Boards  - Such as NHP Concept One, NHP MOD6+

Rated current – 63A

Rated leakage current – 30mA

Voltage Type – AC

Earth-leakage Protection Class  - TYPE A

Trip Curve – C

Frequency – 50/60 Hz

Rated voltage - 415 V

Number of Poles - 3P+N

Poles Switched -  3x Active poles (Solid Neutral)

Rated short-circuit breaking capacity according to AS/NZS 61009 - 10kA

Depth Approx 72mm Height Approx 118mm Width Approx 54mm

ESV Compliance: Exempt (RCBO over 110mm length)

Maximum Cable Size - Line- 35mm2 / Load- 25mm2

Terminal Tightening Torque - 2.5Nm

IP Rating - IP20

Warranty - 10 Years

- Australian Standard Approved, Certified By SAA Approvals QLD, RCM/Regulatory Compliance Mark N5667
